DCI 700 – Common Rail Injector test bench

DCI 700

DCI 700

DCI 700

DCI 700

Mounting and dismounting of injectors on DCI 700

Mounting and dismounting of injectors on DCI 700

Thanks to the simple menu navigation and the graphic and numerical presentation of the results, the DCI 700 enables an efficient way of working and is therefore extremely cost-effective.

Thanks to the simple menu navigation and the graphic and numerical presentation of the results, the DCI 700 enables an efficient way of working and is therefore extremely cost-effective.

DCI 700
DCI 700
Mounting and dismounting of injectors on DCI 700
Thanks to the simple menu navigation and the graphic and numerical presentation of the results, the DCI 700 enables an efficient way of working and is therefore extremely cost-effective.

The Bosch DCI 700 diesel test bench is designed with the future in mind with its new measurement system that has the ability to test the latest common rail injector technologies for all car and commercial vehicle systems, including those with Needle Closing Control (NCC) and Valve Closing Control (VCC).

The DCI 700 offers you and your workshop super-efficient testing with its short mounting and testing times, which enable four common rail injectors to be tested in less than 15 minutes.

Designed with a tapered base, it allows the operator to stand closer to the bench without having to bend to mount the injectors. This is one of the many ergonomic features that make the DCI 700 so easy-to-use.

More Information

DCI 700
YouTube

Learn how to efficiently test Common Rail injectors with the latest diesel test bench DCI 700 from Bosch. The video guides you step by step through the whole process of testing Common Rail injectors on DCI 700.

  • Ergonomic and intuitive design: For easy operation
  • Short mounting and testing times: For supreme efficiency
  • Test all cars and commercial vehicles: For versatility
  • New technology: For futureproofing the equipment and your requirements
  • Adjustable screen: Each operator can set height and angle of the screen individually
  • Faster, more accurate test measuring: For more precise outcomes in terms of adjustments to injectors
  • Online updates: Keeping you up-to-date with current test specifications
  • Bright, dazzle-free workspace lighting: Giving great visibility of leaks whilst also being easy on the operator’s eyes
  • Clear and accurate results: Demonstrate your expertise and service level to customers with a printed test report (printer optional)
  • No need for high-pressure hoses: To reduce service costs
Test pressure 30 MPa to 250 MPa
Test pressure
Max. Rail pressure
30 MPa to 250 MPa
260 MPa
Test pressure
Mechanical pressure limitation
30 MPa to 250 MPa
270 MPa
Test pressure
Rail pressure control by
30 MPa to 250 MPa
2 Pressure control valves (DRV) on Rail and MeUN in CP4
Test pressure
Automatical Injector back flow pressure control
30 MPa to 250 MPa
50 kPa to 1200 kPa
Test pressure
Used HD pump for test pressure generation
30 MPa to 250 MPa
CP4.2 (CP4-25)
Test pressure
Capacity of test oil tank:
at the max. marking
at the max. marking
30 MPa to 250 MPa

45 l
35 l
Test pressure
Tightening torques of high-pressure connections, locking screws
30 MPa to 250 MPa
25 Nm
Test pressure
Dimensions with monitor and keyboard tray (W x H x D )
30 MPa to 250 MPa
1700 x 1736 x 1082 mm
Test pressure
Dimensions without monitor and w/o keyboard tray (W / H / D )
30 MPa to 250 MPa
1616 x 1736 x 786 mm
Test pressure
Weight without test oil
30 MPa to 250 MPa
590 kg
Operating System Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
Operating System
Software and data base updates
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
via DDM (Diagnostic Download Manager, Internet connection neccessary)
Operating System
AC Voltage supply
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
380 VAC to 460 VAC
Operating System
Rated current
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
15 A
Operating System
Fuse
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
16 A
Operating System
Phases
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
3 P/PE
Operating System
Input frequency
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
50 Hz/60 Hz
Operating System
Protection class entire test bench
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
IP 20
Operating System
Air pressure, corresponds to a height of
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
700 hPa to 1060 hPa ≤ 2200m
Operating System
Workplace-related emission sound pressure level according to DIN EN ISO 11201
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
< 69.2 dB(A) +/- 2.5 dB
Operating System
Operating temperatur
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
5 °C to 40 °C
Operating System
Max. permissible relative humidity
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
≤90 % (at 25 °C and 24 hours duration)
Operating System
Storage temperature
Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
-20 °C to 60 °C

  • Injector test bench DCI 700
  • High pressure pump CP4.2
  • CRI accessory kit for solenoid and piezo CRIs
  • 15.6'' LCD Touchscreen
  • Tray for keyboard
  • working area lightning
  • electric CRI connection lead (2, 3, 4 pin)
CRIN 1, CRIN 2 and CRIN 3 accessory kit for commercial vehicle CR-Injectors
1 687 010 607
CRIN 4.2 accessory kit for commercial vehicle CR-Injectors
1 687 010 608
CRI 3rd Party Accessory kit
1 687 010 69
Printer
1 687 001 850
Adapters for CRIN injectors
> Download
Segment Brochure (PDF)
> Download
Product Brochure (PDF)
> Download
DCI 700 Help Center
> Learn more
Manuals, updates and information
> Learn more

Further products

DCI 200

DCI 200
– Single Common-Rail Injector test bench

Read more
EPS 708

EPS 708
– Common Rail test bench

Read more

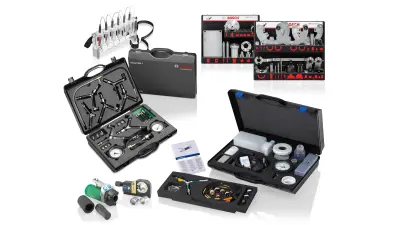

Tools for diagnosis and repair
